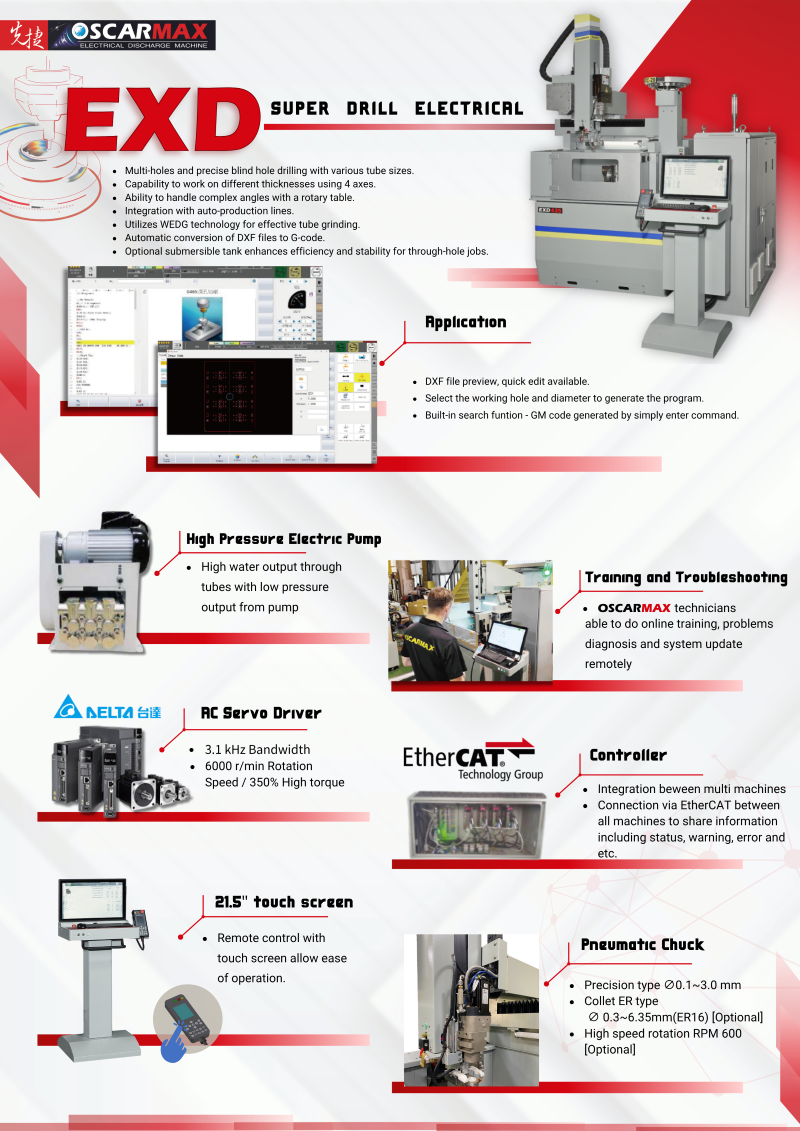

Micro Drill Electrical Discharge Machine - EXD400

Micro Drill Electrical Discharge Machine - EXD400
1 CPU Intel i3 Grade.

2 PC Base, equipped with Windows LTSC Entrepreneurial Operating System.

3 3.5" colored touch screen on remote control.

4 21.5" 1920x1080 touch screen on panel with HDMI interface.

5 USB interface for downloading or uploading data via Internet.

6 Traditional Chinese & English display available.

7 Authorised users setting system.

8 Maintenance Checklist System.

9 ECO stand-by mode for power saving.

10 Calendar system to schedule planned jobs.

11 Equipped with IIOT, where use API(DLL file) to work remotely, and possible to display with other machines' working data.

12 Notification buy email while jobs are finished.

13 Utilization calculation system.

14 Fluid degree data records automatically.

15 Records and display the job.

16 Operating manual available on the system.

17 Digital voltmeter equipped.

18 FUZZY program editor.

19 Sparking depth location analytic diagram.

20 Sparking wave profile diagram.

21 Screenshot funtion.

22 Backup restore function.


Table Travel (X)mm400
Table Travel (Y)mm300
Servo Travel (W)mm345
Guide travelmm200
Manual Guide travelmm150
Max. Workpiece Dimensions (WxD)mm990 x 460
Guide(30mm) to Work Tablemm5 - 355
Max. Workpiece Weightkg450
Table Size (WxD)mm600 x 300
Machine Weightkg1200


Max. Working CurrentA120
Overall Power ConsumptionKVA10


Tank CapacityL120
Filter Densityμm10
Filter Elementspc1


  • Electrode Tube: Ø0.1mm
  • Depth: 3.8mm x 600 holes
  • Time: 4 hours
  • Drawing automatic transfer with 6 axes machining.


  • Electrode Tube: Ø0.7mm
  • Workpiece: Turbine blade
  • Depth: 40 holes with breakthrough
  • detect system
  • Time: 30mins


  • Electrode Tube: Ø0.1mm
  • Real hole: Ø0.12mm
  • Time: 2 mins (total)
  • Depth: Ø0.2mm x 6 holes

Standard Accessories

  1. Filter
  2. Stainless Water Tank [with Detached Flushing Pump (Made in Japan)]
  3. Tool Box
  4. Electrode Guide Ø1.0mm
  5. Precision Electrode Holder Ø0.1~3.0mm
  6. Electrode Tube Ø1.0mm
  7. Calibrating Rod Ø6.0mm
  8. Halogen Work Lamp
  9. Leveling Pad
  10. X, Y-axes Linear Scale (1u)
  11. Z, W-axes Encoder
  12. X, Y, Z-axes Double-Nut Ball Screw
  13. W-axis Ball Screw

Optional Accessories

  1. Filter
  2. LED Lamp
  3. Electrode Guide
  4. Electrode Tube
  5. ER Type Precision collet holder: Ø6.35mm
  6. ER-Precision Adapter
  7. Automatic Tool Changer / ATC 16/32T
  8. Automatic Guide Changer / AGC 10G
  9. Rotary Axis: B-axis
  10. 80L Stainless Water Tank
  11. Stainless & Submerged Work Tank & Dieletric Tank
  12. W-axis optional: W-axis(500mm)+Z-axis(350mm) (Available in SD300, 350, 400, 450, 550, 600, 755)
  13. Z-axis optional: Z-axis(500mm)+X-axis(500mm) (Available in SD550, 600, 755)
  14. Finish Stop Device
