Die Sinker Electrical Discharge Machine - S1880 CNC

Die Sinker Electrical Discharge Machine -  S1880 CNC
CNC S1880 are Numerical Control type of sinker edm machines. It features with automatic positioning and side discharge machining. The oil tank capacity is up to 2717 liter. The machine body is made by casting, where can be load up to 7000 kg. With its latest FUZZY intelligence function, it will automatically come out with he machining parameters. The work table is 1850 x 1000 mm, mostly being used in production of aerospace industry.


Table Travel (X)mm1800
Table Travel (Y)mm800
Servo Travel (Z)mm600
Max. Workpiece Dimensions (WxD)mm2420 x 1220
Max. Filling Height of Dielectric Tankmm505
Distance Between Chuck to Tablemm305 - 905
Max. Workpiece Weightkg7000
Max. Electrode Weightkg500
Table Size (WxD)mm1850 x 1000
Machine Weightkg9000


Max. Working CurrentA120
Overall Power ConsumptionKVA12


Tank CapacityL2715
Filter Densityμm20
Filter Elementspc8

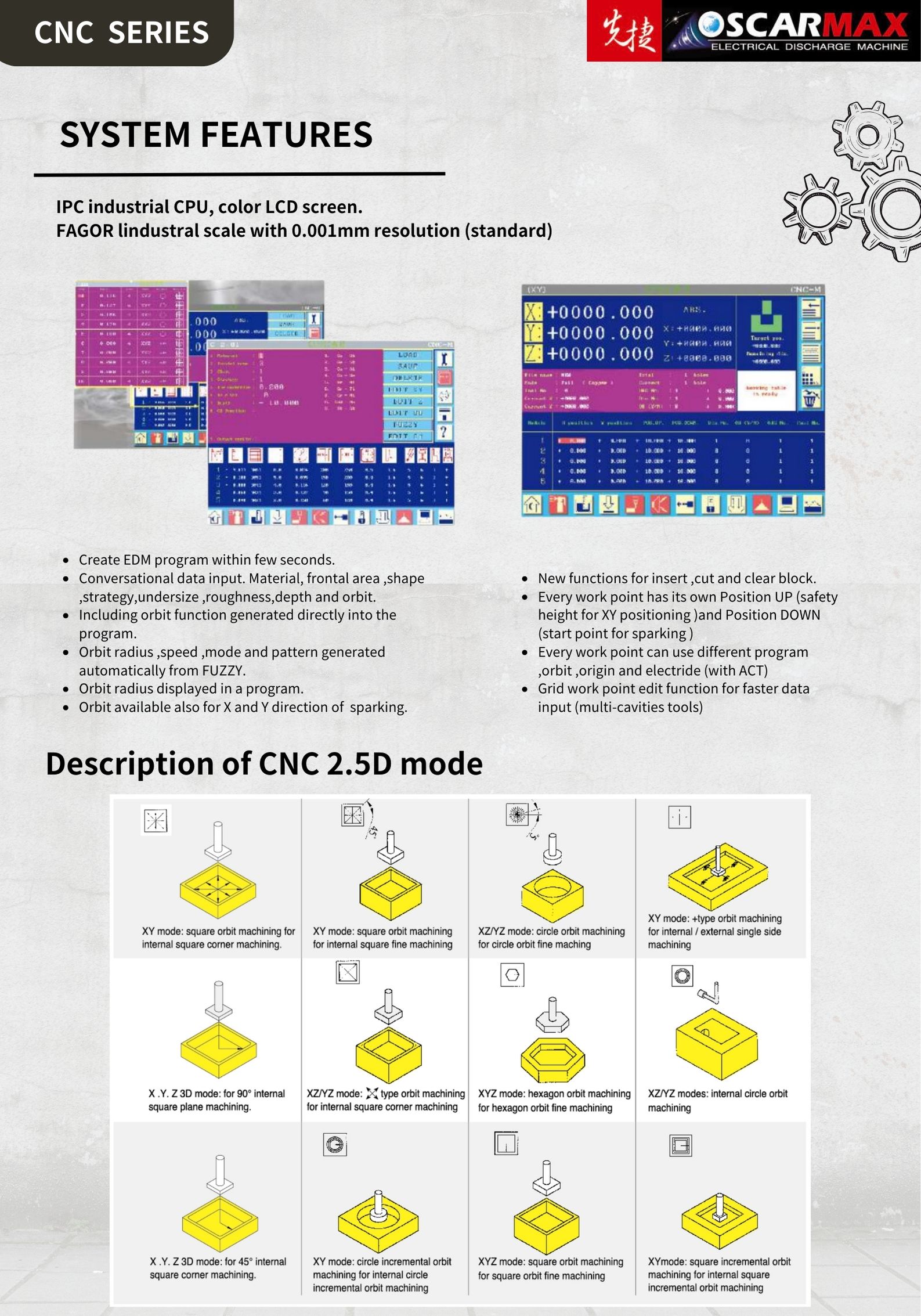

CNC System Features

  • Create EDM program within few seconds.
  • Conversaitonal data input. Material, frontal area, shape, strategy, undersize, roughness, depth and orbit.
  • Including orbit function generated directly into the program.
  • Orbit radius, speed, mode and pattern generated automatically from FUZZY.
  • Orbit radius displayed in a program.
CNC System Features

  • Orbit also available for X and Y direction of sparking.
  • New functions for insert, cut and clear block.
  • Every work point has its own Position UP (safety height for XY positioning) and Position DOWN (start point for sparking).
  • Every work point can use different program, orbit, origin and electrode (with ATC).
  • Grid work point edit function for faster data input (multi-cavities tools).
-Die Sinker Electrical Discharge Machine -  S1880 CNC

Standard Accessories

  1. 15" LCD Screen
  2. Auto Fire Extinguisher
  3. Halogen Work Lamp
  4. Clamping Plate
  5. Leveling Pad
  6. Flushing Nozzle
  7. Patented Electrode Holder
  8. Paper Filter
  9. Drill Chuck
  10. Tool Box
  11. Remote Controller
  12. M.P.G.
  13. Signal Tower Light

Optional Accessories

  1. 3R / EROWA ATC 4/6T
  2. Measuring Probe
  3. Dielectric Cooler
  4. Permanent Magnetic Table
  5. EZ-SPARK for Super Hard Workpiece
  6. High Speed Turbo Machining Circuit
