Die Sinker Electrical Discharge Machine - S1060 CNC

Die Sinker Electrical Discharge Machine - S1060 CNC
1. Machining in 2.5D mode allows to spark and orbit along XY, XZ, YZ plane.

2. IPC industrial CPU, color LCD screen. FAGOR linear scale with 0.001mm resolution (standard).

3. C5 ball screw with pre-loaded double nut, P class linear guides with extra-long blocks, self-designed strong heat-treated FC25 casting. In combination with proper maintenance advised by OSCARMAX ensure high accuracy and reliability for decades.

4. V8 Copper and graphite special circuit to increase efficiency and minimize electrode wear-out.

5. TURBO (standard) & EZ SPARK (option) – OSCARMAX self-developed high-speed circuits help to increase efficiency and MRR of standard (TURBO) and super hard (EZ-SPARK) materials. especially for deep ribs and roughing operations.

6. Technologies for sparking steel (SKD11, P20, NAK80, STAVAX, stainless steel), aluminum, tungsten-carbide, titanium, copper, copper alloys and nickel alloys materials using graphite, copper, and tungsten-copper electrodes.

7. Automatic cycles for edge find and center find for easy workpiece set up. Automatic positioning (100 work-points)

8. DC servo drive with manual fine tuning to maintain process stability and surface integrity.

9. Remote control box with MPG for easy operation.

10. FUZZY automatic programming.


Table Travel (X)mm1000
Table Travel (Y)mm600
Servo Travel (Z)mm500
Max. Workpiece Dimensions (WxD)mm1670 x 990
Max. Filling Height of Dielectric Tankmm460
Distance Between Chuck to Tablemm260 - 760
Max. Workpiece Weightkg4500
Max. Electrode Weightkg350
Table Size (WxD)mm1250 x 750
Machine Weightkg5500


Max. Working CurrentA120
Overall Power ConsumptionKVA12


Tank CapacityL1610
Filter Densityμm20
Filter Elementspc6

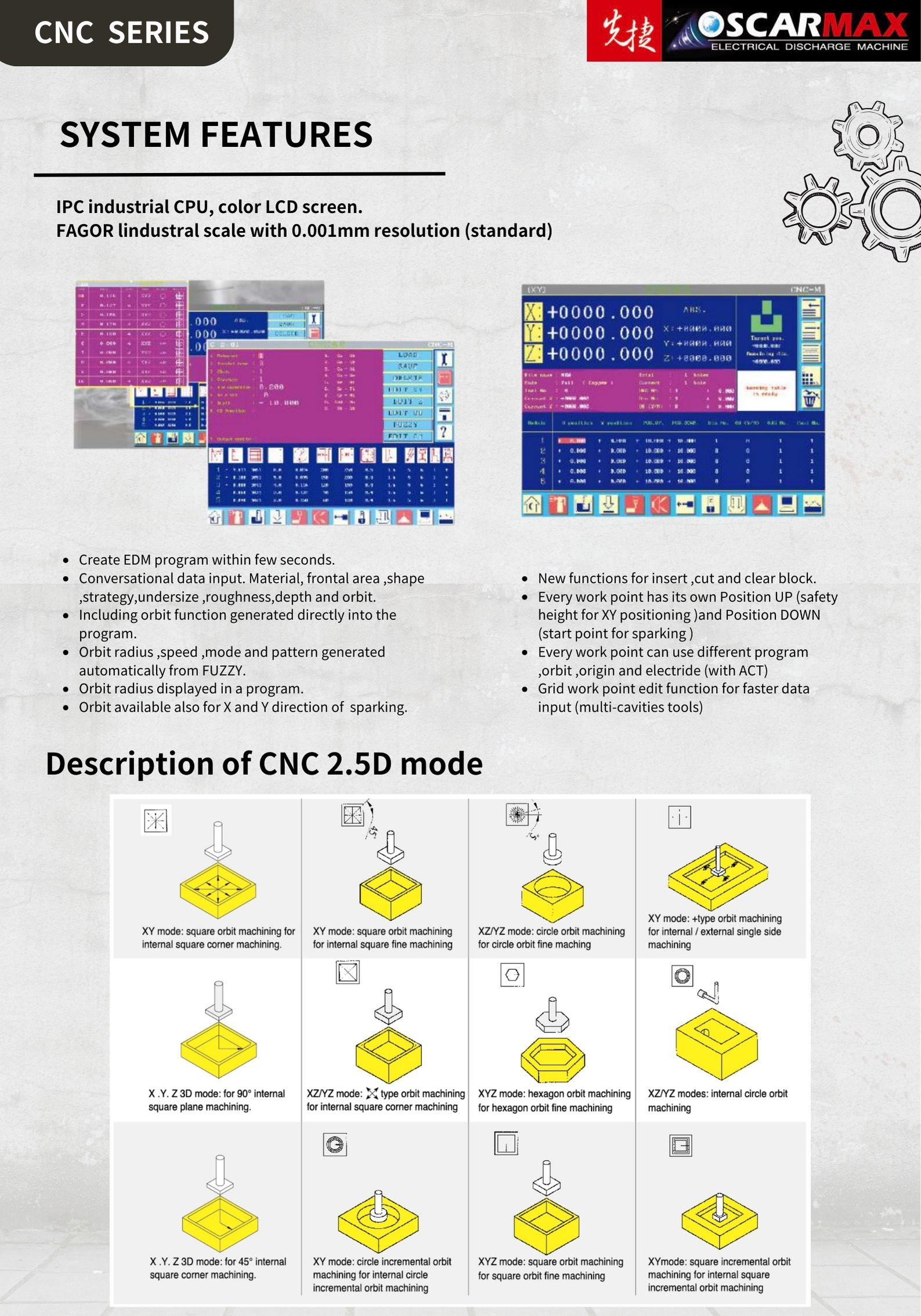

CNC System Features

  • Create EDM program within few seconds.
  • Conversaitonal data input. Material, frontal area, shape, strategy, undersize, roughness, depth and orbit.
  • Including orbit function generated directly into the program.
  • Orbit radius, speed, mode and pattern generated automatically from FUZZY.
  • Orbit radius displayed in a program.
CNC System Features

  • Orbit also available for X and Y direction of sparking.
  • New functions for insert, cut and clear block.
  • Every work point has its own Position UP (safety height for XY positioning) and Position DOWN (start point for sparking).
  • Every work point can use different program, orbit, origin and electrode (with ATC).
  • Grid work point edit function for faster data input (multi-cavities tools).
-Die Sinker Electrical Discharge Machine - S1060 CNC

Standard Accessories

  1. 15" LCD Screen
  2. Auto Fire Extinguisher
  3. Halogen Work Lamp
  4. Clamping Plate
  5. Leveling Pad
  6. Flushing Nozzle
  7. Patented Electrode Holder
  8. Paper Filter
  9. Drill Chuck
  10. Tool Box
  11. Remote Controller
  12. M.P.G.
  13. Signal Tower Light

Optional Accessories

  1. 3R / EROWA ATC 4/6T
  2. Measuring Probe
  3. Dielectric Cooler
  4. Permanent Magnetic Table
  5. EZ-SPARK for Super Hard Workpiece
  6. High Speed Turbo Machining Circuit
